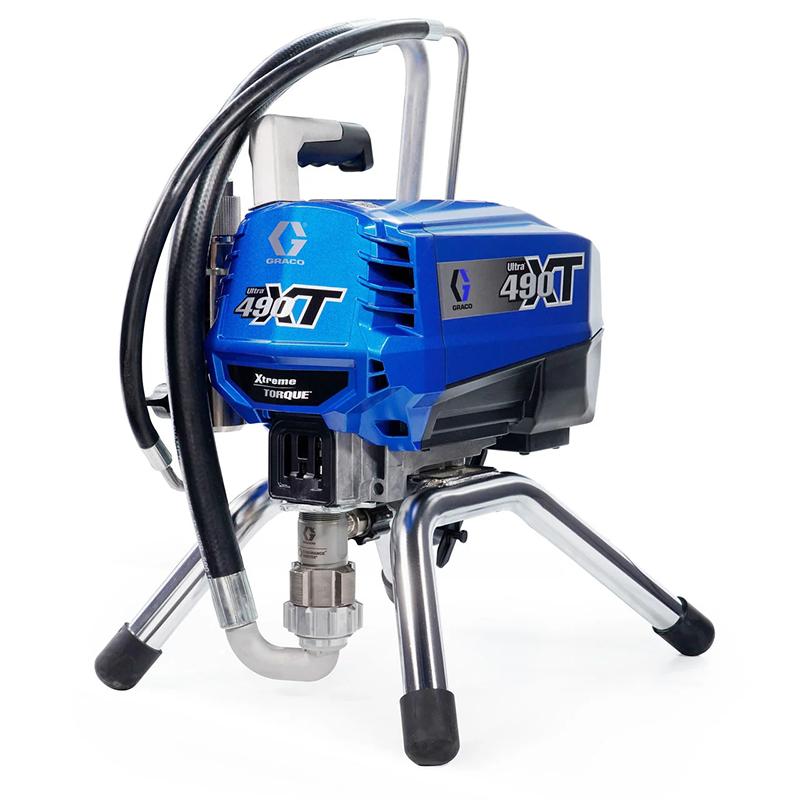

GRACO Ultra 490 XT Electric Brushless Airless Sprayer
$5,390.00
Regular price $4,581.50$5,390.00
Regular price $4,581.50The Ultra 490 XT delivers an airless spray experience like no other. Made in the USA with a 1.3 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance and the longest life pump in its class.
The 490 XT is sure to become a staple in your fleet, making it easier to get more work done in a day with increased flow and production rates.
Compatible materials:
- Interior/Exterior Latex
- Oil-based Primers
- Acrylics
- Block Fillers
Features
Xtreme Torque Motor Technology
- 15 X more torque than traditional motors
- 8 X more magnets provide unmatched power and performance
- 90% lower running speeds extend motor life
- 10 X quieter
Spray 3 x more Litres Than Most Spray Pumps
- Endurance piston pumps are made using the highest grade materials to deliver the industry's longest life
- Proven proprietary V-MAX Blue™ packings individually supported on chrome piston rod to deliver reliability you can count on
- Delivers the longest pump life by automatically rotating piston rod to extend pump life
- Virtually eliminates side loading
- Up to 80% longer piston stroke than competitive models — enhances flow and boosts performance
- Extended piston stroke design increases wear surface and improves hard part life
Steadiest Pressure Control with Widest Performance Range
- Rapid-Response™ Control eliminates pressure fluctuations by continuously monitoring pressure — 60X per motor revolution
- Instantly adjusts motor speed to eliminate 75% of pressure fluctuations for a Perfect Airless Finish™
- Offers the largest operating pressure range providing full control and maximum productivity
- Flexible for more applications—coatings, hose lengths and tip sizes to meet every application
- Low pressure mode (50 to 2000 psi) adjustable in 10 psi increments
- Use High Pressure Mode for Xtreme Performance (500–3,300 psi)
Push Button Performance
- Two selectable performance modes offer unique performance levels to boost efficiency on every job
- Features a bright easy-to-read LED Display — see performance from across the room
Maximise Uptime
- Industry’s fastest pump cleaning system delivering 6 X faster cleaning with 1/2 the water
- WatchDog Pump protection prevents damage by shutting off the pump when it's out of paint, preventing premature wear
- Easy Out Filter provides easy maintenance and less clogging
- Eliminate downtime with ProConnect on-the-job pump replacement
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Tech Specifications
Ultra 490 XT
| Motor | 1.3 HP Xtreme Torque |
| Min Working Pressure | 50 psi |
| Max Working Pressure | 3300 psi |
| Max Flow Rate | 2.6 L/min |
| Tip Type Supported | RAC X |
| Max Tip Size | 0.025 in |
| Tip Included | RAC X LP 517 |
| Number of Guns |
1 |
| Weight | 15 kg |

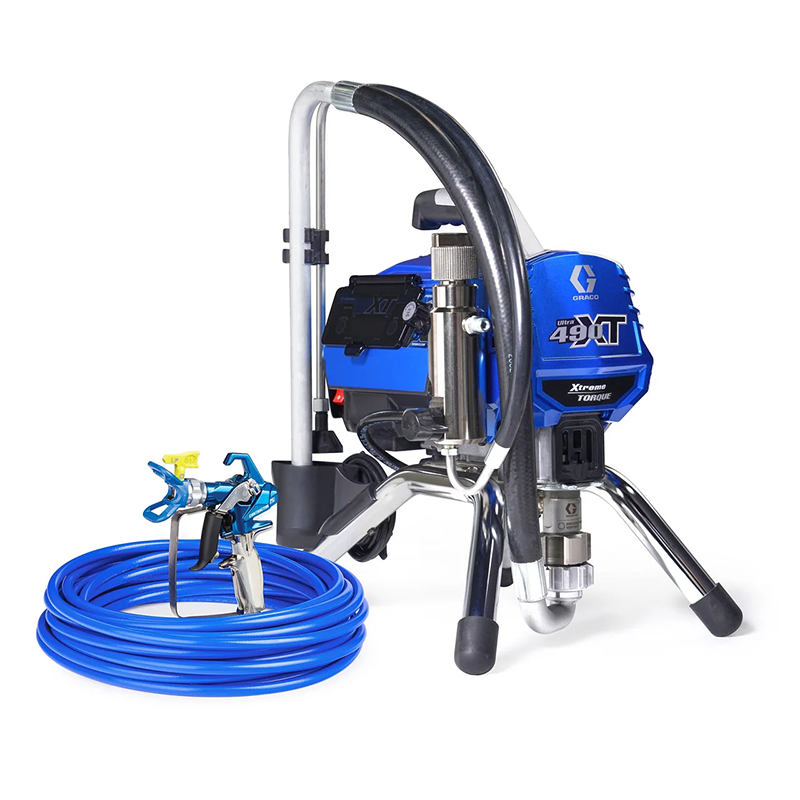

Includes
- Contractor PC Gun
- RAC X Guard
- RAC X LP 517 Tip
- BlueMax II Hose 1/4" (6.4mm) x 15m
Video
Downloads
Description
The Ultra 490 XT delivers an airless spray experience like no other. Made in the USA with a 1.3 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance and the longest life pump in its class.
The 490 XT is sure to become a staple in your fleet, making it easier to get more work done in a day with increased flow and production rates.
Compatible materials:
- Interior/Exterior Latex
- Oil-based Primers
- Acrylics
- Block Fillers
