FESTOOL TDC 18V Cordless 4 Speed Drill 5.0Ah Bluetooth Set in Systainer
Powerful. Versatile. With four gears for every application and the best switching concept you have ever operated. Whether you are working on wood or metal, the TDC QUADRIVE is extremely durable and thanks to its brushless EC-TEC motor, has extreme resilience and endurance.
Up to 75Nm of power drives screws and drills large diameters easily, while electronic kickback stop minimises wrist injury if the tool suddenly jams.
The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled drill for a wide range of possible uses.
Main applications
- Production of wooden substructures, frame structures
- Installation of doors and windows
- Drilling and screwdriving in wood, metal and plastic
- Drive screws into wood up to 10x300 mm
- Drilling in wood up to 70 mm with Forstner drill bits
Features
The electronic kickback stop prevents your wrist from twisting dangerously if the drill suddenly becomes caught or jammed, therefore ensuring improved safety when working.
1st gear: Demanding tightening of screws up to 10 mm. 2nd gear: Quick screwdriving up to 8 x 300 mm in size. 3rd gear: Powerful drilling with auger bits of up to 20 mm. 4th gear: Quick drilling with medium and small drill bits up to 35 mm, for example Forstner drill bits.
Fast, safe, direct! Switching in any direction – from any gear straight to any other, without intermediate stages. Fixed stops ensure clear engaging. Fast downshifting possible as required.
40% more torque compared to the previous model for full traction with 8 mm screws.
Thanks to the smart FastFix interface, you can use all of the 18 V attachments from the Festool range and therefore benefit from the system advantages. No other drill has such varied possible uses!

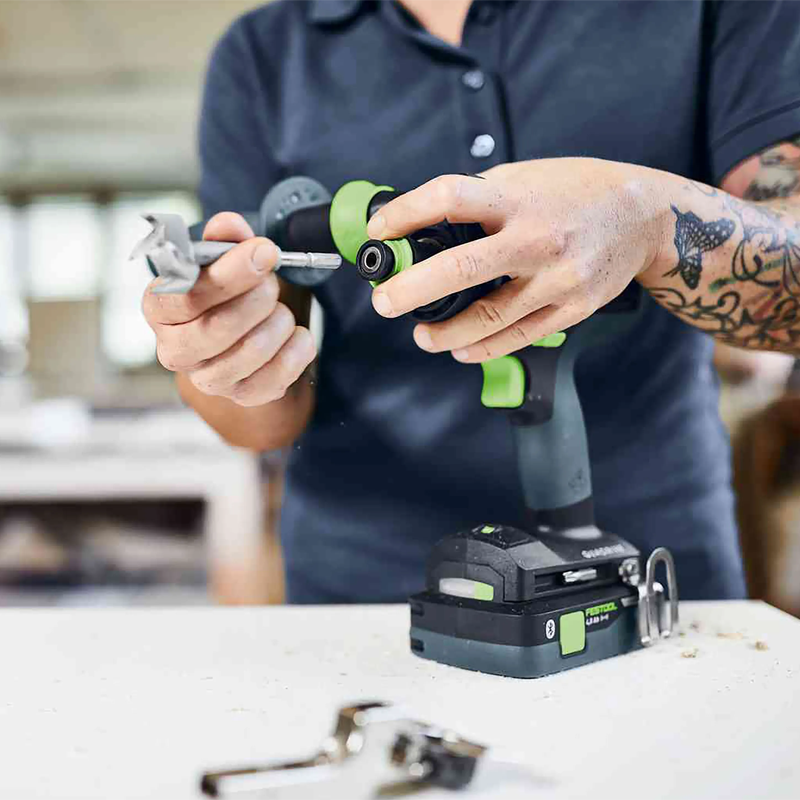

For instantly changing between drilling, countersinking and screwdriving: The CENTROTEC tool chuck, which has proven itself since 2001, is a chuck and bit holder in one. Even though it is half the size and weighs 80% less than a standard chuck: A real Festool invention with the usual Festool quality.
The brushless EC-TEC motor is wear-free and converts the energy from the battery into optimum power with virtually no losses. The electronic motor management also guarantees maximum service life: Microprocessors monitor and control the temperature, voltage and current consumption of the motor, electronics and battery. The latest generation of EC-TEC motors provides more torque and speed under load.
Very quick angle adjustment simply by rotating the green ring. The attachment no longer needs to be released from the machine. Even the eccentric adapter for screwdriving close to edges is equipped with quick angle adjustment.
Optimised torque adjustment to prevent accidental adjustment. A robust belt clip that can be attached on both sides and a bit holder for secure and magnetic bit storage at the side of the drill.
Thanks to its smaller circumference, the optimised handle ensures improved ergonomics and easier handling.
Tech Specs
| Battery type | 18V Li-ion Bluetooth |
| Battery capacity | 5.0 Ah |
| Motor | Brushless |
| Drilling diameter (Wood/Steel) | 70 mm / 13 mm |
| No load speed - 1st gear | 0 - 500 rpm |
| No load speed - 2nd gear | 0 - 800 rpm |
| No load speed - 3rd gear | 0 - 2350 rpm |
| No load speed - 4th gear | 0 - 3600 rpm |
| Torque adjustment | 2 - 20 Nm |
| Maximum torque (Wood/steel) | 50 Nm / 75 Nm |
| Chuck range | 1.5 - 13 mm |
| Weight | 2.0 kg (with battery) |
Includes
- TDC 18V 4-speed drill
- 2 x 18V Li-ion Bluetooth Airstream batteries
- TCL 6 rapid charger
- Soft grip handle
- CENTROTEC Magnetic bit holder
- CENTROTEC Tool chuck
- FastFix Keyless chuck
- PZ 2 bit
- Belt clip
- SYS 2 Systainer
