$9,834.00

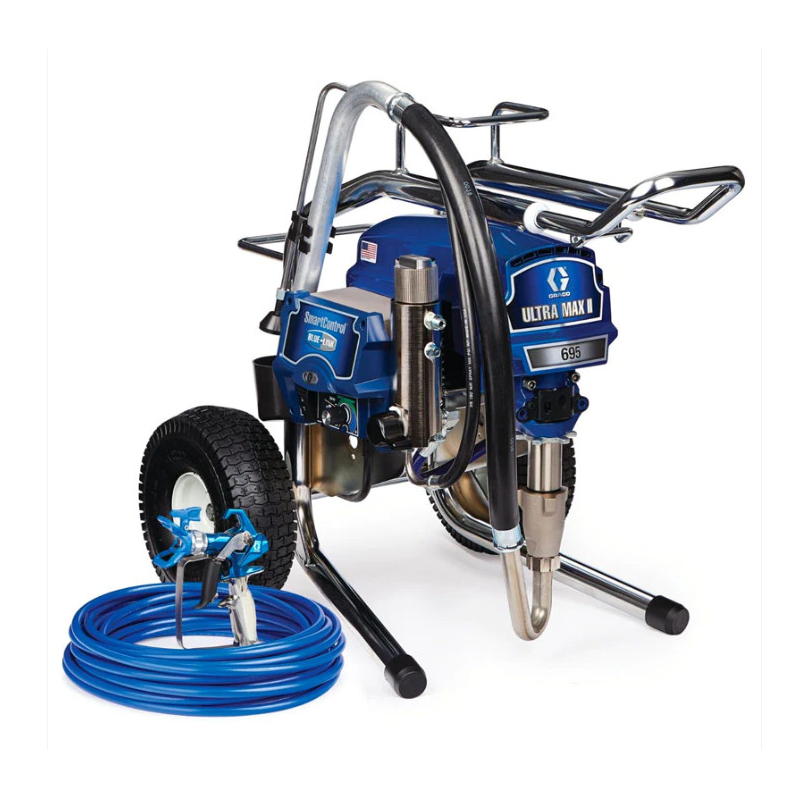

Regular price $7,867.20The Ultra Max II 695 ProContractor Series is designed to deliver speed and performance so you can get to the next jobsite faster and increase your profits. It provides reliability and performance with a 2.2HP brushless DC motor and production rate of up to 3.6 litres per minute for a range of coatings.
Ideal for residential and light commercial contractors that spray 400-800 litres per week. Connects up to two guns with a maximum 90m of hose.
Smart features ensure a consistent spray fan, unit protection from electrical and dry pumping damage and faster clean up times.
Compatible materials:
- Interior/Exterior Latex
- Oil-based Primers
- Acrylics
- Block Fillers
Features
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough Vortex rotating rod technology
- Oversised passages for high velocity flow to rotate piston for even wear
- Lasts 6X longer between repacks
- Repack pump in minutes with QuikPak cartridge repair system
SmartControl 4.0 with ProGuard Protection System
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- Ideal for low pressure tips commonly used for fine finish work and low overspray applications
- ProGuard prevents electrical damage from extreme job site power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
BlueLink Job & Sprayer Management App
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximise uptime: Set maintenance schedules, alerts, & job site notes
QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 90m of hose is seconds
- No twisting, kinking and coiling
- Use only the hose you need - the rest stays on the reel
MaxPower Motor & Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty on motor and drive train
ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- Pin-less design needs no tools
FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Tech Specifications
Ultra Max II
| Amperage | 15 A |
| Power Source | 240 V / Single Phase |
| Engine Size | 2.2 HP |
| Frequency | 50/60 Hz |
| Max Working Pressure | 3300 psi |
| Max Flow Rate | 3.6 L/min |
| Max Sound Pressure Level | 82 dB(A) |
| Tip Type Supported | RAC X LTX |
| Max Tip Size | 0.031 in (1 gun) / 0.023 (2 guns) |
| Tip Included | RAC X LTX 517 |
| Number of Guns |
2 |
| Filter Mesh | 60 Mesh |
| Fluid Outlet Size | 6.35 mm (1/4") |
| Fluid Outlet Thread Type | NPSM |
| Hose Inlet Size | 6.35 mm (1/4") |
| Frame Configuration | Hi-Boy Stand |
| Dimensions | 984 H x 660 L x 572 W mm |
| Weight | 50 kg |
Includes
- Contractor PC Gun
- RAC X LTX 517 Tip
- BlueMax II Hose 1/4" x 15m
Videos
Description
The Ultra Max II 695 ProContractor Series is designed to deliver speed and performance so you can get to the next jobsite faster and increase your profits. It provides reliability and performance with a 2.2HP brushless DC motor and production rate of up to 3.6 litres per minute for a range of coatings.
Ideal for residential and light commercial contractors that spray 400-800 litres per week. Connects up to two guns with a maximum 90m of hose.
Smart features ensure a consistent spray fan, unit protection from electrical and dry pumping damage and faster clean up times.
Compatible materials:
- Interior/Exterior Latex
- Oil-based Primers
- Acrylics
- Block Fillers
