Name: GRACO RAC X Fine Finish Low Pressure Tip
Brand: Graco
SKU: GR-FFLP106
Price: 69.50 AUD
Availability: InStock

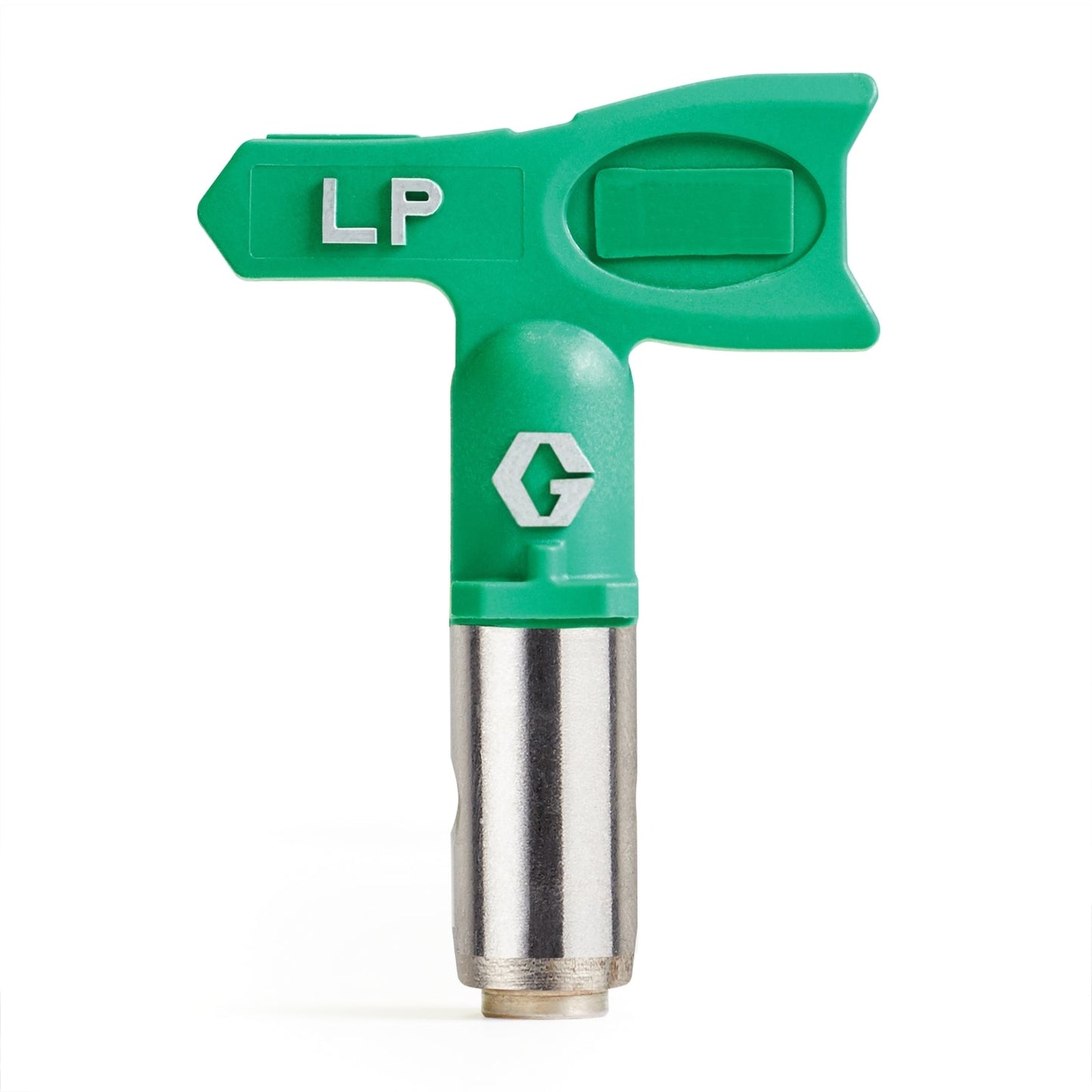

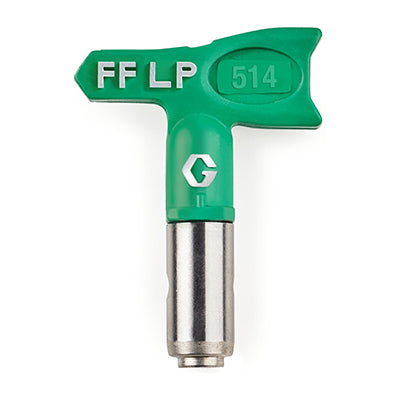

GRACO RAC X Fine Finish Low Pressure Tip

Quantity

GRACO RAC X Fine Finish Low Pressure Tip

Graco

SKU: GR-FFLP106

Quantity

$69.50

$86.90

-$17.40

Tax included.

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) X SwitchTip. Reverse the SwitchTip to easily clear clogs. For fine finish applications.

Less Prep & Clean-up Time
- Less mess with less overspray
- Put the paint where you want it

Easiest Pattern Overlap
- Softer spray fan pattern
- Easy to apply any material to any surface
- Consistent blended finish quality
Extended Life
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance - up to 2X life
SmartTip Technology
- Exclusive internal tip geometry
- Reduces energy required to atomise paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
Best Tip on the Market
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
- Large raised tip size numbers are always legible “ even when covered with paint
Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents

Spray Chart

Tip	Fan Pattern Size	Orifice
106	5 - 10 cm	0.006"
108	5 - 10 cm	0.008"
208	10 - 15 cm	0.008"
210	10 - 15 cm	0.01"
214	10 - 15 cm	0.014"
308	15 - 20 cm	0.008"
310	15 - 20 cm	0.01"
312	15 - 20 cm	0.012"
314	15 - 20 cm	0.014"
410	20 - 25 cm	0.01"
514	25 - 30 cm	0.014"
516	25 - 30 cm	0.016"
